FRDD
Forensically-Relevant Drug Database
Description
Preferred Drug Name
Brief Description
Spirochlorphine (R-6890) is a novel synthetic opioid characterized as an “orphine” analogue with a spiropiperidine group. It bears structural similarity to other benzimidazolones (e.g., brorphine, chlorphine, N-propionitrile chlorphine). Spirochlorphine was first researched in the 1970s as a narcotic analgesic and has since been reported in drug materials in North America and Europe.1,2 Spirochlorphine was first identified by our laboratory in May 2025 and later confirmed after acquiring standard reference material.

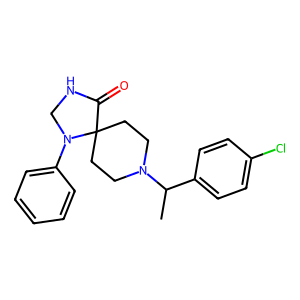

Structure
Nomenclature
Formal Name (IUPAC)
Synonyms
Identifiers
CAS Numbers
Chemistry
Chemical Formula
Molecular Mass
Molecular Ion
Exact Mass
SMILES
InChI String
InChI Key
GCMS Analytics
Lab
Comments
| Sample Preparation: | Drug Materials: Dilution in methanol or acid / base extraction Drug Standards: Dilution in methanol |
| Instrument: | Agilent 5975 Series GC/MSD System |
| Column: | Agilent J&W DB-1 (12 m x 200 µm x 0.33 µm) |
| Carrier Gas: | Helium (Flow: 1.46 mL/min) |
| Temperatures: | Injection Port: 265 °C Transfer Line: 300 °C MS Source: 230 °C MS Quad: 150 °C Oven Program: 50 °C for 0 min, 30 °C/min to 340 °C for 2.3 min |
| Injection Parameters: | Injection Type: Splitless, Injection Volume: 1 µL |
| MS Parameters: | Mass Scan Range: 40-550 m/z |
Images
Fragments
139
230
56
103
HRMS Analytics
Lab
Comments
| Sample Preparation: | Toxicology Samples: Liquid-liquid extraction Drug Materials: Dilution of sample in mobile phase |
| Instrument: | Sciex TripleTOF® 5600+, Shimadzu Nexera XR UHPLC Sciex X500R, Sciex ExionLC |
| Column: | Phenomenex® Kinetex C18 (50 mm x 3.0 mm, 2.6 µm) |
| Mobile Phase: | A: Ammonium formate (10 mM, pH 3.0) B: Methanol/acetonitrile (50:50) Flow rate: 0.4 mL/min |
| Gradient: | Initial: 95A:5B; 5A:95B over 13 min; 95A:5B at 15.5 min |
| Temperatures: | Autosampler: 15 °C Column Oven: 30 °C Source Heater: 600 °C |
| Injection Parameters: | Injection Volume: 10 µL |
| QTOF Parameters: | TOF MS Scan Range: 100-510 Da Precursor Isolation: SWATH® acquisition (27 windows) Fragmentation: Collison Energy Spread (35±15 eV) MS/MS Scan Range: 50-510 Da |
Images
Fragments
370.1658
232.1436
127.0863
103.0542
